♻️ Closed-Loop Cleaning Systems:
Eliminating Waste from Industrial Wash Lines
Executive Summary. Closed-loop cleaning recovers and reuses wash water and solvents via filtration, separation, and smart dosing. It cuts utilities, reduces sludge disposal, improves hygiene compliance, and pays back fast — typically 12–24 months depending on load and chemistry.
Why closed-loop now?
Costs & compliance: Fresh water, effluent treatment, and chemical disposal costs are rising. Regulations are stricter globally.
Brand & export: Hygiene + sustainability are audit line-items in FSSC/ISO/BRC/ESG standards.
Operations: Predictable cleaning quality with fewer rewash cycles means higher OEE.
What is a closed-loop cleaning system?
A wash line where process media are continuously recovered and fed back into the cycle — instead of being discharged.
Typical loop elements
- Multi-stage filtration: basket strainers → cartridge filters → fine filters (3–10 µm)
- Oil-water separation & skimming: coalescers, skimmers, decanters
- Sludge management: settling, lamella clarifiers, automatic purge cones, filter press (optional)
- Chemical health: auto dosing, conductivity/pH control, temperature control
- Water quality: recirculation pumps, heat exchangers, optional RO/UF polishing for final rinse
- Data layer: sensors → PLC → SCADA/IIoT dashboards
Savings & impact (typical ranges)
| Metric | Conventional | Closed-Loop |
|---|---|---|
| Fresh water use | 100% | −50% to −80% |
| Detergent use | Unmetered | −30% to −60% (auto-dose) |
| Energy (heating) | High loss | −15% to −20% (heat retention & VFD) |
| Sludge volume | Uncontrolled | −25% to −52% |
| Rewash/rejects | Frequent | −20% to −40% |
| Payback | — | 12–24 months typical |

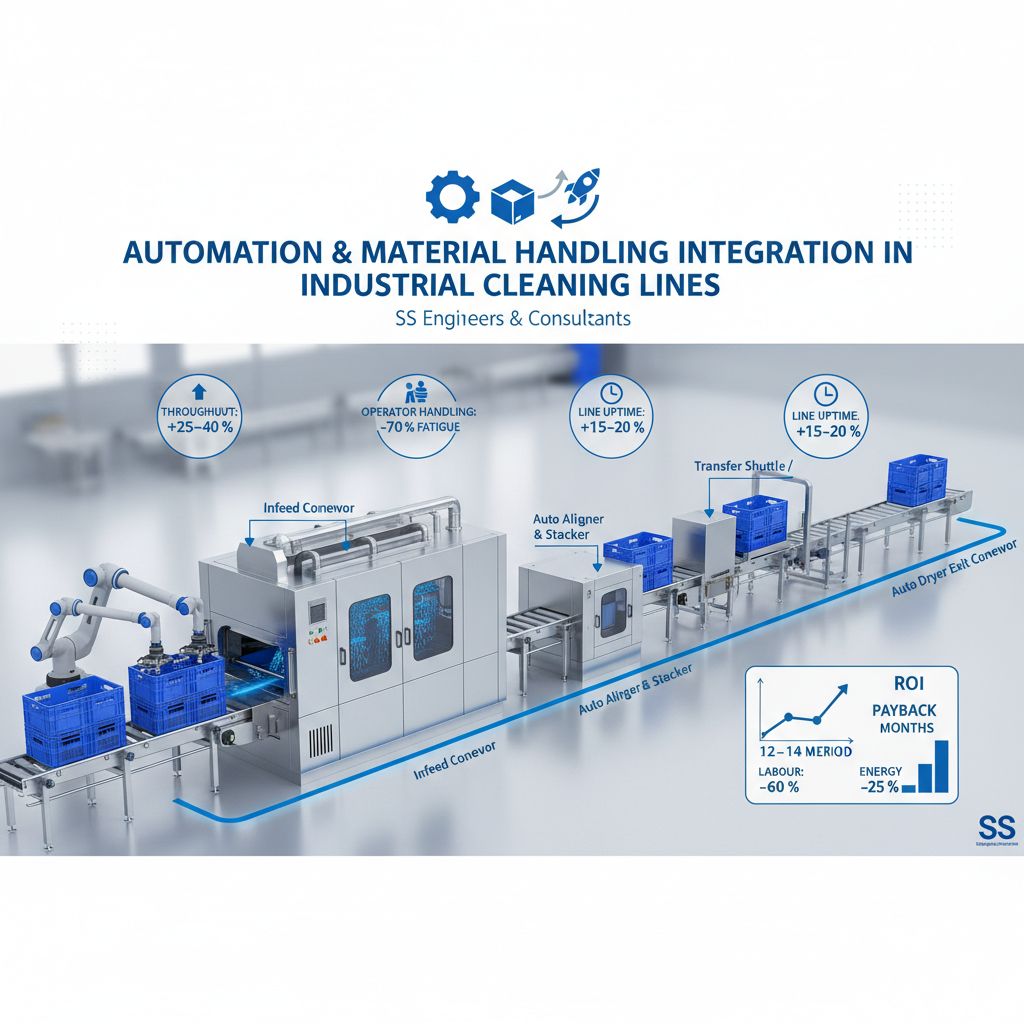

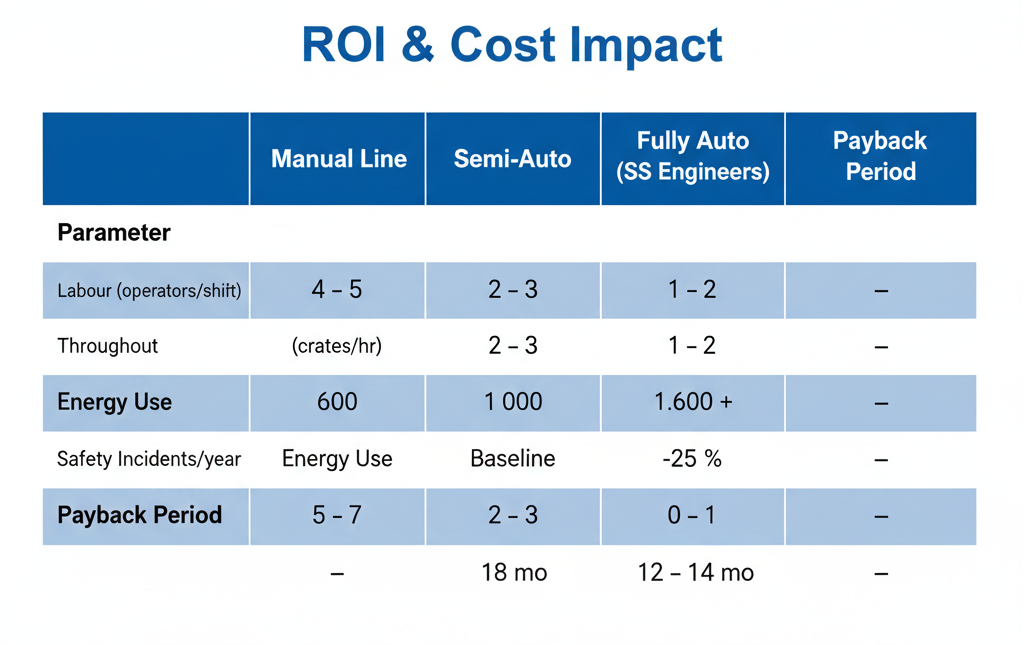

Visualizing ROI and Efficiency Gains
“Through their rise in popularity, competition on the product and increased commercial demands, plants find balance in ‘the loop.’”
Materials & construction
- SS304/SS316 frames & tanks, hygienic design
- PTFE-lined pumps for aggressive chemistries
- Insulation (PIR/PUF) for heat retention and safer touch points
Conclusion
With SS Engineers & Consultants, you gain a partner who engineers the entire system — mechanical + chemical + digital — so your teams can focus on production, not firefighting.
